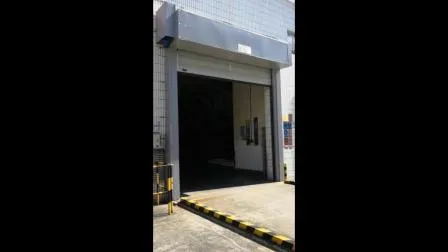

Galvanized Steel Panel Industrial Upward Sliding Overhead Sectional Doors Used for Factory/Cold Room/Warehouse/Garage Door

Basic Info.

Certification	ISO9001
Position	Industrial
Surface Finishing	Finished
Construction	Steel-Foam-Steel Sandwich Construction
Shaft Model	Solid/Hollow
Tracks	Single Track or Double Track
Panel Thickness	0.376 - 0.476mm (Can Be Adjusted)
Steel Thickness	0.35mm,0.45mm
Emergency Operation	Manual Hoist Chain in Case of Power off
Safety	Wire Rope Anti-Break Protection
Bracket Material	Galvanized Steel
Guide Rail Material	Galvanized Steel
Bracket Thicknes	3.0mm
Guide Rail Thickness	2.0mm
Infilling	Polyurethane PU
Special Functions	Fireproof,Thermal Insulation
Material of Panel	Galvanized Steel Plate with Coating
Transport Package	Wood Case or Plywood Case or Cardboard
Origin	China
HS Code	73083000
Production Capacity	5000 Sets / Year

Product Description

Galvanized Steel Panel Industrial Upward Sliding Overhead Sectional Doors used for Factory/Cold Room/Warehouse/Garage DoorStructure:

1.Rails	2.Track fixed Angle plate	3. Horizontal rail	4.Horizontal rail fixed Angle plate
5 .Sealing strip	6. Door shaft	7. Coupling	8. Seat
9.Drum	10. Spring	11.Spring anti-fracture device.	12.Fixed spring device (SBR)
13.Fixed spring device (WS)	14Industrial door opener	15. Door opener control box	16. Buffer
21.Middle door panel	22. Hinges	19.Top door panel	20.Lighting window (optional)
25. Bottom sealing groove.	26. Bottom seal and safety bottom	27. Bottom pulley	28.4 mm Steel rope
29. Steel rope anti-fracture device.	30. Bottom sealing strip	31.Central sealing strip	33.Top sealing strip
35.Top seal groove	36. Remote receiving device (optional)

Product name	Industry Sectional Sliding Door
Material	Galvanized steel with PU foaming inside
Material Construction	Steel-foam-steel, sandwich panel
Thickness of the steel plate	0.376 - 0.476mm both available
Thickness of the panel	40mm or 50mm
Section Style	Non-finger protection
	Finger protection
Section Size Range	400mm-500mm in height,
	Max 12000mm in width
Section Surface Finish	Wood grain, orange peel, flush
Front-side design	Wood grain, with Rectangle/stripes design
Backside design	Wood grain, with Stripe design
Accessories	Single Track with min headroom for 350mm;
	Double Track with min headroom for 150mm
Door Openers	AC220V or 110V; DC Motor; 800-1500N
Opening Way	Electrical control and Manual operation
Color	light gray, coffee color and stainless steel color and other colors can be customized

Why Choose Us?

Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force

Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

F A Q :

1,Are you trading company or manufacturer ?

A: We are factory.2. What's the payment details?Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.3. What's the delivery time?For common order, about 15 days only.4. What about the warranty for the doors?We provide 12 months warranty for all doors and accessories.5. Do you provide OEM Service?Yes. OEM & ODM Service is ok for us.6. What's the MOQ?We accept 1 set as sample order.7. How about the package?Plywood case, suitable for sea freight or air freight, as your request.
